Eyeshower

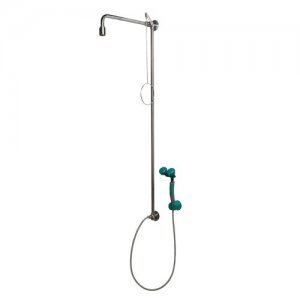

PremiumLine body safety shower with hand-held eye shower, wall mounted, exposed pipework

• shower arm ¾“ made of stainless steel, polished, projection 625 mm
• two wall flanges ¾” made of stainless steel, polished, with top water inlet ¾” female and bottom water inlet ¾” female for mounting in circulating water taps
• incl. plug ¾” for flange made of stainless steel
• ball valve ¾“ made of stainless steel, with pull rod, DIN-DVGW tested and certificated
• pull rod made of stainless steel, polished, length 700 mm
• high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
• integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
• hand-held eye shower with two spray heads 45°, wall mounted
• water-bearing parts made of brass
• handle with integrated, adjusting activation made of plastics, valve not self-closing
• high-performance spray heads made of brass, 45° angled, for large-scale dispersion of water, chemical resistant powder coated, largely scale-free, with rubber sleeves and sealed dust caps
• integrated flow regulation 14 litre / minute
• integrated backflow preventer
• stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
• robust wall mounting bracket with positioning of the shower
• sign for body safety shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
• sign for eye shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
• according to DIN EN 15154-1:2006 and DIN EN 15154-2:2006
• according to ANSI Z358.1-2009 and DIN 12899-3:2009
• DIN-DVGW tested and certificated



Article-No.: BRU864095
