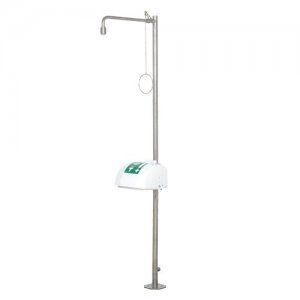

Eyeshower - PremiumLine freestanding body safety shower with eye-/face wash unit with bowl and lid

Navigation

flange plate with 4 mounting holes made of stainless steel, polished, dimensions 200 x 200 mm
stand pipe 1 ¼” made of stainless steel, polished, with top and bottom water inlet 1 ¼” female
shower arm ¾” made of stainless steel, polished, total length 655 mm
ball valve ¾ “ with pull rod made of stainless steel, DIN-DVGW tested and certificated
pull rod made of stainless steel, polished, length 700 mm
high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
total height 2 300 mm, projection 655 mm
eye-/face wash unit with bowl and lid, dimensions (H x W x D): 205 x 355 x 305 mm
body, lid and bowl made of UV and impact resistant ABS plastic, water outlet 1 1/2” male
activation by pulling down the lid
high-performance spray heads made of brass, for large-scale dispersion of water, chemical resistant powder coated, largely scale-free, with rubber sleeves and sealed dust caps
integrated flow regulation valve for eye shower
according to DIN EN 15154-1:2006 and DIN EN 15154-2:2006
according to ANSI Z358.1-2009 and DIN 12899-3:2009
