Eyeshower

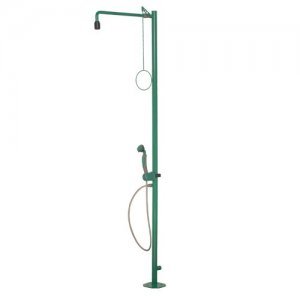

ClassicLine freestanding body safety shower with hand-held eye shower

• flange plate with 4 mounting holes made of stainless steel, chemical resistant green powder coated, dimensions 200 x 200 mm
• stand pipe 1 ¼” made of stainless steel, chemical resistant green powder coated, with top and bottom water inlet 1 ¼” female
• shower arm ¾” made of brass, chemical resistant green powder coated, total length 655 mm
• ball valve ¾ “ with pull rod made of stainless steel, DIN-DVGW tested and certificated
• pull rod made of steel, chemical resistant green powder coated, length 700 mm
• high-performance shower head made of chemical resistant plastic, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
• integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
• total height 2 300 mm, projection 655 mm
• hand-held eye shower with one spray head 45°, mounted on stand pipe
• water-bearing parts made of brass
• handle with integrated, adjusting activation made of plastic, valve not self-closing
• high-performance spray head made of brass, 45° angled, for large-scale dispersion of water, chemical resistant powder coated, largely scale-free, with rubber sleeves and sealed dust caps
• integrated flow regulation 7 litre / minute
• integrated backflow preventer
• stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
• robust wall mounting bracket with positioning of the shower
• according to DIN EN 15154-1:2006 and DIN EN 15154-2:2006
• according to ANSI Z358.1-2009 and DIN 12899-3:2009
• DIN-DVGW tested and certificated



Article-No.: BRU833085
