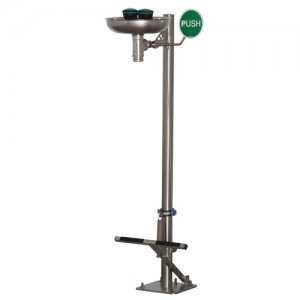

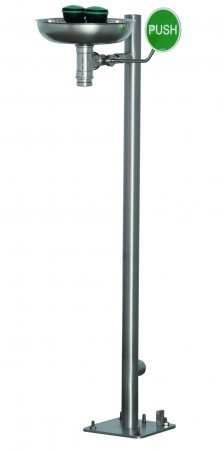

PremiumLine freestanding eye shower with stainless steel bowl
- flange plate with 4 mounting holes made of stainless steel, polished, dimensions 200 x 200 mm
- stand pipe 1 ¼” made of stainless steel, polished, with top and bottom water inlet 1 ¼” female
- big push plate made of steel, length 240 mm, with large signal "PUSH", luminescent according to DIN 67510
- ball valve ½” made of stainless steel, DIN-DVGW tested and certificated
- high-performance spray heads made of stainless steel, for large-scale dispersion of water, largely scale-free, with rubber sleeves and sealed dust caps
- integrated flow regulation 16 litre / minute
- bowl made of stainless steel, diameter 275 mm, water outlet 1 ¼” male
- connecting pipe ½” made of stainless steel, length 100 mm
- sign for eye shower according to DIN 4844-2-D and BGV A8, self-adhesive PVC-film, 150 x 150 mm
- total height 1160 mm, projection 410 mm, total width incl. lever 425 mm
- according to DIN EN 15154-2:2006 and ANSI Z358.1-2009
- DIN-DVGW tested and certificated
Article-No.: BRU305095
