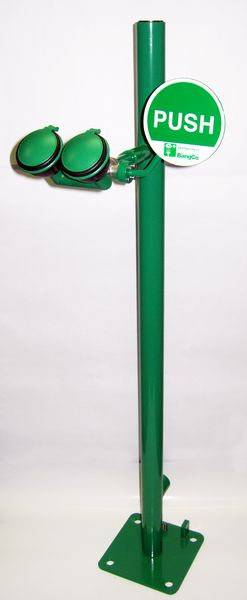

ClassicLine freestanding eye shower with two spray heads
- flange plate with 4 mounting holes made of stainless steel, chemical resistant green powder coated, dimensions 200 x 200 mm
- stand pipe 1 ¼” made of stainless steel, chemical resistant green powder coated, with top and bottom water inlet 1 ¼” female
- big push plate made of steel, length 240 mm, chemical resistant green powder coated, with large signal "PUSH", luminescent according to DIN 67510
- ball valve ½” made of stainless steel, DIN-DVGW tested and certificated
- high-performance spray heads made of brass, for large-scale dispersion of water, chemical resistant green powder coated, largely scale-free, with rubber sleeves and sealed dust caps
- integrated flow regulation 16 litre / minute
- connecting pipe ½” made of brass, chemical resistant green powder coated, length 100 mm
- sign for eye shower according to DIN 4844-2-D and BGV A8, self-adhesive PVC-film, 150 x 150 mm
- total height 1160 mm, projection 410 mm, total width incl. lever 290 mm
- according to DIN EN 15154-2:2006 and ANSI Z358.1-2014
- DIN-DVGW tested and certificated
Article-No.: BRU304085
