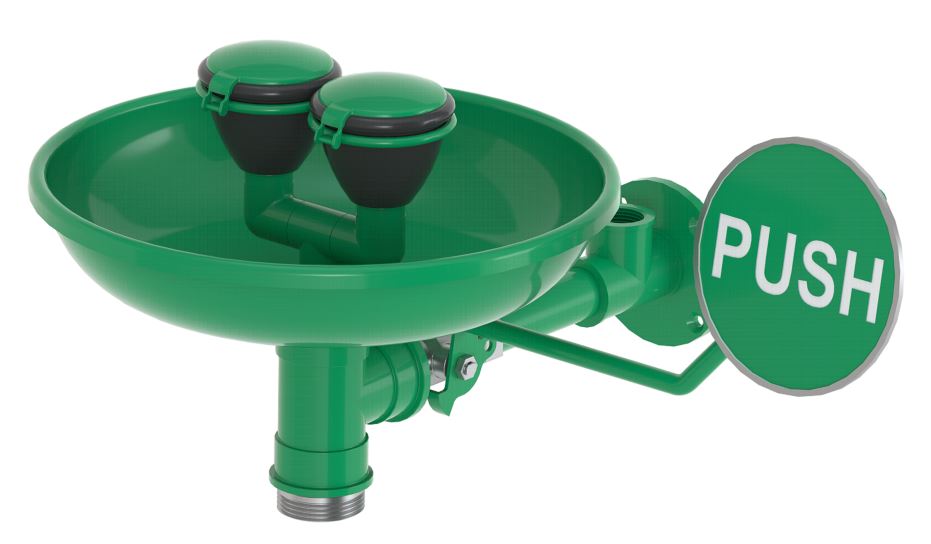

Eyeshower - ClassicLine eye shower with bowl, wall mounted, exposed pipework

Navigation

wall flange with 4 mounting holes made of stainless steel, chemical resistant green powder coated, water inlet ¾” female
connection pipe of stainless steel for easy installation and alignment of the shower, chemical resistant green powder coated
ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
push plate made of steel, chemical resistant green powder coated, length 240 mm, with large signal "PUSH", luminescent according to DIN 67510
integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2.5 to 5 bar flow pressure
high-performance spray heads for large-scale dispersion of water, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
bowl made of plastic, green, diameter 275 mm, water outlet 1 ¼” male
sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
height 210 mm, projection 425 mm, total width incl. lever 400 mm
mounting height 860 mm (± 200 mm)
according to DIN EN 15154-2 and ANSI Z358.1-2
DIN-DVGW tested and certificated
