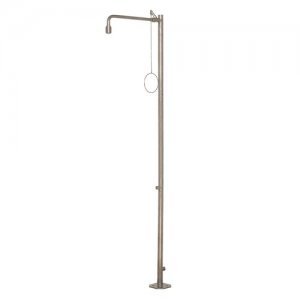

PremiumLine EXTRA freestanding body safety shower
- material stainless steel AISI 316
- flange plate with 4 mounting holes made of stainless steel AIS, polished, dimensions 200 x 200 mm
- stand pipe 1 ¼” made of stainless steel, polished, with top and bottom water inlet 1 ¼” female
- shower arm ¾” made of stainless steel, polished, total length 655 mm
- ball valve ¾ “ with pull rod made of stainless steel, DIN-DVGW tested and certificated
- pull rod made of stainless steel, polished, length 700 mm
- high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
- integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
- total height 2300 mm, projection 655 mm
- according to DIN EN 15154-1:2006
- according to ANSI Z358.1-2009 and DIN 12899-3:2009
- DIN-DVGW tested and certificated
Article-No.: BRU830995
