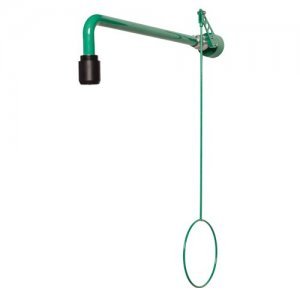

ClassicLine body safety shower with valve, wall mounted
- shower arm ¾“ made of brass, chemical resistant powder coated, projection 625 mm, water inlet ¾” male
- push-on rosette made of polyamide to cover the installation
- ball valve ¾“ made of stainless steel, with pull rod, DIN-DVGW tested and certificated
- pull rod made of steel, chemical resistant powder coated, length 700 mm
- high-performance shower head made of chemical resistant plastics, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
- integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
- sign for body safety shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
- installation height 2335 mm (+/- 100 mm)
- according to DIN EN 15154-1:2006
- according to DIN 12899-3:2009 and ANSI Z358.1-2009
- DIN-DVGW tested and certificated
Article-No.: BRU081085
