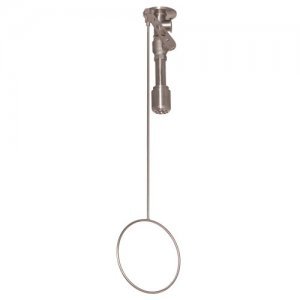

Eyeshower - PremiumLine body safety shower with valve, ceiling mounted, exposed pipework

Navigation

shower arm ¾“ made of stainless steel, polished, total length 245 mm
ceiling flange ¾” made of stainless steel, polished, water inlet ¾” female
ball valve ¾“ made of stainless steel, with pull rod, DIN-DVGW tested and certificated
pull rod made of stainless steel, polished, length 700 mm
high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
sign for body safety shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
installation height according to norms as listed below: lower edge of the shower head must be 2200 mm (± 100 mm) height above floor level
according to DIN EN 15154-1:2006
according to DIN 12899-3:2009 and ANSI Z358.1-2009
DIN-DVGW tested and certificated
