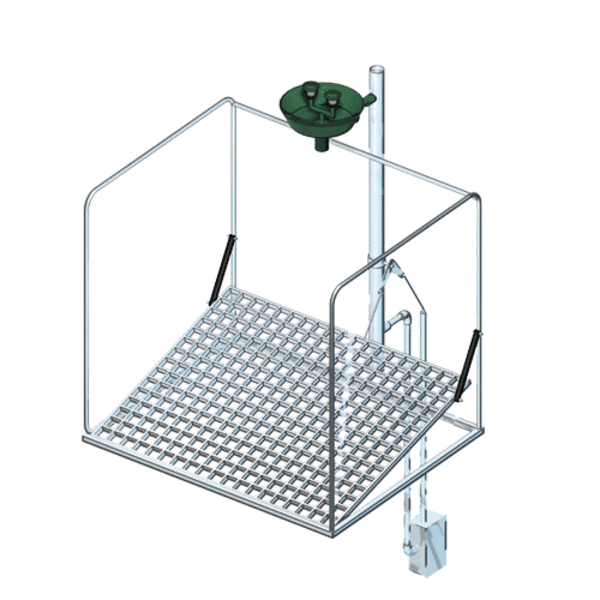

PremiumLine frost protected self-draining eye shower station, with underfloor actuation


  • frame made of stainless steel tubes, dimensions (H x W x D): 960 x 850 x 900 mm
  • platform actuation made of galvanized steel, mounted with chain on angle diversion, dimensions (W x D): 800 x 800 mm
  • angle diversion to pull rod made of stainless steel, with mounting accessories made of stainless steel

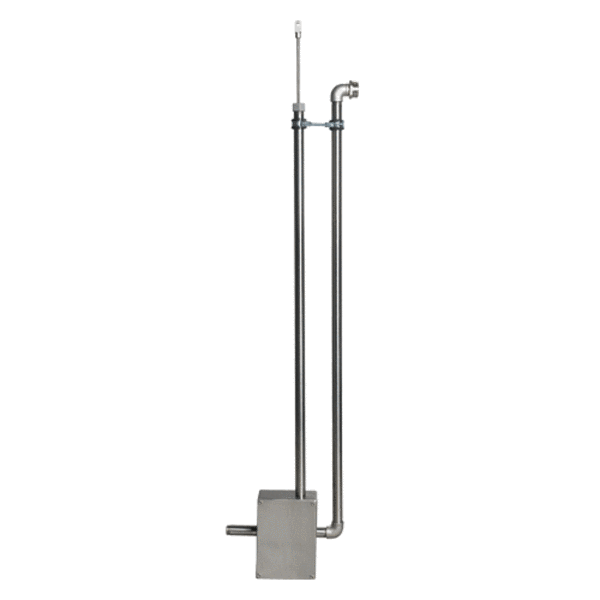

  • ball valve made of stainless steel as underfloor actuation, mounted in stainless steel cabinet, with pull rod activation 1 000 mm, DIN-DVGW tested and certificated, with automatic self-draining in 1 000 mm depth
  • flange plate with 4 mounting holes made of stainless steel, polished, dimensions 200 x 200 mm
  • stand pipe 1 ¼” made of stainless steel, polished, self-draining, with bottom water inlet 1 ¼” female
  • eye shower with stainless steel bowl, diameter 275 mm, chemical resistant green powder coated, water outlet 1 ¼” male
  • high-performance spray heads made of brass, for large-scale dispersion of water, chemical resistant green powder coated,  largely scale-free, with rubber sleeves and sealed dust caps
  • integrated flow regulation 16 litre / minute
  • connecting pipe ½” made of brass, chemical resistant green powder coated, length 100 mm
  • total height 1160 mm, width 850 mm, depth 900 mm
  • according to DIN EN 15154-2:2006 and ANSI Z358.1-2009



Article-No.: BRU887395
