Eyeshower

PremiumLine frost protected self-draining safety shower combination station, with underfloor actuation

• frame made of stainless steel tubes, dimensions (H x W x D): 960 x 850 x 900 mm
• platform actuation for eye shower made of galvanized steel, mounted with chain on angle diversion, dimensions (W x D): 800 x 800 mm
• angle diversion to pull rod made of stainless steel, with mounting accessories made of stainless steel

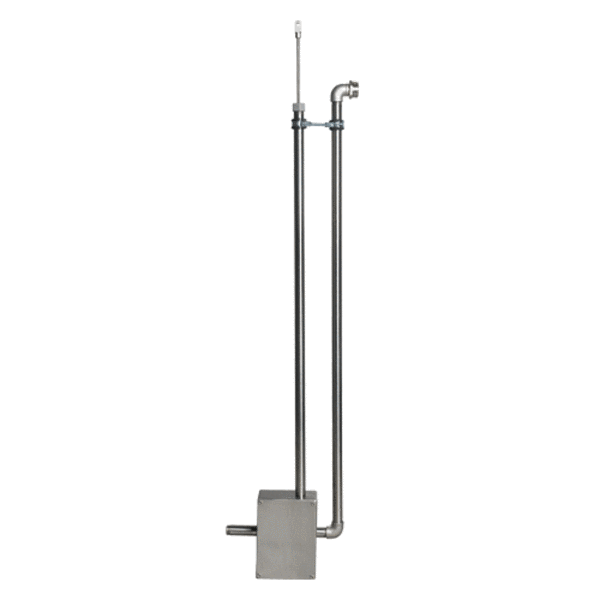

• ball valve made of stainless steel as underfloor actuation, mounted in stainless steel cabinet, with pull rod activation 1 000 mm, DIN-DVGW tested and certificated, with automatic self-draining in 1 000 mm depth
• flange plate with 4 mounting holes made of stainless steel, polished, dimensions 200 x 200 mm
• stand pipe 1 ¼” made of stainless steel, polished, self-draining, with bottom water inlet 1 ¼” female
• shower arm ¾” made of stainless steel, polished, total length 655 mm
• ball valve ¾ “ with pull rod made of stainless steel, DIN-DVGW tested and certificated
• pull rod made of stainless steel, polished, length 700 mm
• high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
• flow rate at least 75 l/min. at 1 bar dynamic water pressure
• eye shower with stainless steel bowl, diameter 275 mm, chemical resistant green powder coated, water outlet 1 ¼” male
• high-performance spray heads made of brass, for large-scale dispersion of water, chemical resistant green powder coated,  largely scale-free, with rubber sleeves and sealed dust caps
• integrated flow regulation 16 litre / minute
• connecting pipe ½” made of brass, chemical resistant green powder coated, length 100 mm
• total height 2 300 mm, width 850 mm, depth 900 mm
• according to DIN EN 15154-1:2006 and DIN EN 15154-2:2006
• according to DIN 12899-3:2009 and ANSI Z358.1-2009



Article-No.: BRU886395
