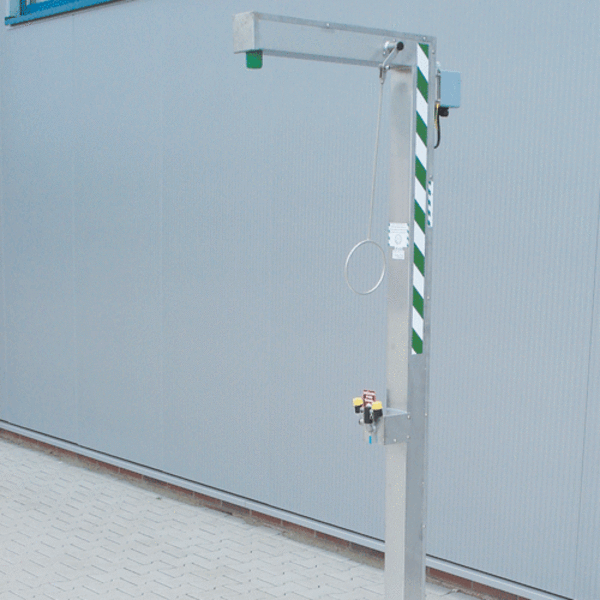

Eyeshower - PremiumLine freestanding frost protected heated emergency safety shower with eye shower

Navigation

flange plate with 4 mounting holes made of stainless steel, dimensions 200 x 200 mm
stand pipe 1 ¼” made of stainless steel, with bottom water inlet 1 ¼” male
shower arm made of stainless steel, projection 600 mm, total length 680 mm
panelling of piping and insulation made of stainless steel, incl. green/white indicative stripes
ball valve made of stainless steel, with pull rod made of stainless steel, length 700 mm
insulation, heating by self-regulating trace tape
high-performance shower head made of chemical resistant plastics, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
flow rate at least 75 l/min. at 1 bar dynamic water pressure
eye shower with two spray heads 45°
high-performance spray heads made of brass, for large-scale dispersion of water, chemical resistant powder coated, largely scale-free, with rubber sleeves and sealed dust caps
outdoor thermostat and energy-circuit (shutdown of trace tape at 14°C, switch on at 4°C)
explosion-proof construction for EX-Zone 1 & 2 (incl. ATEX-certification for complete construction)
electrical supply 230 V – 50 Hz
total height 2 270 mm, projection 600 mm
according to DIN EN 15154-1:2006 and DIN EN 15154-2:2006
according to DIN 12899-3:2009 and ANSI Z358.1-2009
