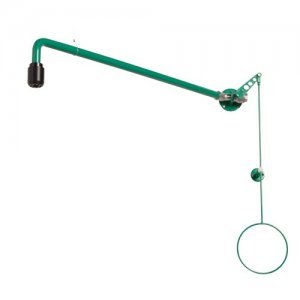

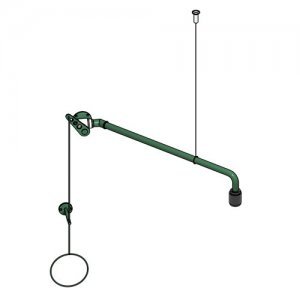

Eyeshower - ClassicLine body safety shower with valve, 45°-construction, above door installation, exposed pipework

Navigation

shower arm ¾“ made of brass, chemical resistant powder coated, projection 800 mm
wire rope suspension set for shower arm, mounting on the ceiling, the wires can be cut to required length on location
45° connecting adapter of stainless steel
ball valve ¾“ made of stainless steel on wall flange, with pull rod, optional left or right of the door mountable, DIN-DVGW tested and certificated, water inlet ¾” female
pull rod made of steel, chemical resistant powder coated, length 700 mm
holder for pull rod made of brass, chemical resistant powder coated
high-performance shower head made of chemical resistant plastics, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
sign for body safety shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
installation height 2 335 mm (+/- 100 mm)
according to DIN EN 15154-1:2006
according to DIN 12899-3:2009 and ANSI Z358.1-2009
DIN-DVGW tested and certificated
