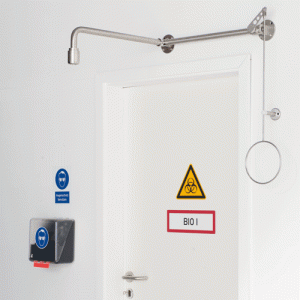

Eyeshower - PremiumLine body safety shower with valve, above door installation, exposed pipework

Navigation

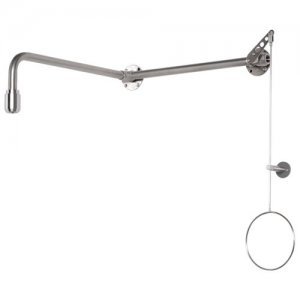

shower arm ¾“ made of stainless steel, polished, projection 565 mm
wall flange ¾” made of stainless steel, polished
connecting pipe ¾” made of stainless steel, polished, length 500 mm
ball valve ¾“ made of stainless steel on wall flange, with pull rod, optional left or right of the door mountable, DIN-DVGW tested and certificated, water inlet ¾” female
pull rod made of stainless steel, polished, length 700 mm
holder for pull rod made of stainless steel, polished
high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
sign for body safety shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
installation height 2 335 mm (+/- 100 mm)
according to DIN EN 15154-1:2006
according to DIN 12899-3:2009 and ANSI Z358.1-2009
DIN-DVGW tested and certificated
